cmm BRIDGE | universal

• Ultra rigid alloy CMM platform provides maximum stiffness for scanning applications
• Structure highly responsive to any ambient temperature change
• FEA designed bridge beam extrusion provides optimum moment of inertia for minimum deflection operating at high accelerations
• Monolithic granite base plate with integral Y dovetail guide-way
• M8 threaded table inserts in generous grid pattern
• Sliding system on air bearings with ultra-rigid isostatic support on all measuring axes
• Pneumatic Z-axis counterbalance
• High-resolution optical linear scales (0.1 micron) mounted in carriers with dynamic signal processing
• Full digital motion control with probe path blending for optimized CMM performance
• Zero hysteresis toothed belt drives to all axes
• Passive vibration damping system to isolate external vibrations
• Easy access to the measuring area
• Maximum positioning Speed 866mm/sec
• Maximum acceleration 1500mm/sec²

• Nominal temperature: 20°C
• Metrological temperature range: 18 – 22°C (Extended range: 16 – 26°C)
• Maximum temperature gradients allowed: 0.5°C/hours – 2°C/24 hours (extended range 5°C/24 hours)
• Operating temperature range: 15 – 35°C
• Relative humidity: 40 – 80% (non-condensing)
• Acceptable Vibrations: 30 mm/sec² 1-10Hz | 15 mm/sec² 10-20Hz | 50 mm/sec²
  20-100Hz

• Minimum air supply: 5 Bar -72PSI
• Air consumption: 100Nl/min
• Power supply voltage: 230v 50Hz or 110v 60Hz
• Maximum power consumption: 10A 1200W

• Silicon carbide Z-axis column enhancing further CMM stiffness
• 0.1 micron resolution free floating measuring scales
• Dynamic wireless thermal compensation system including part temperature sensor

Each COORD3 CMM is factory-tested according to the UNI EN ISO 10360 – 2 standard

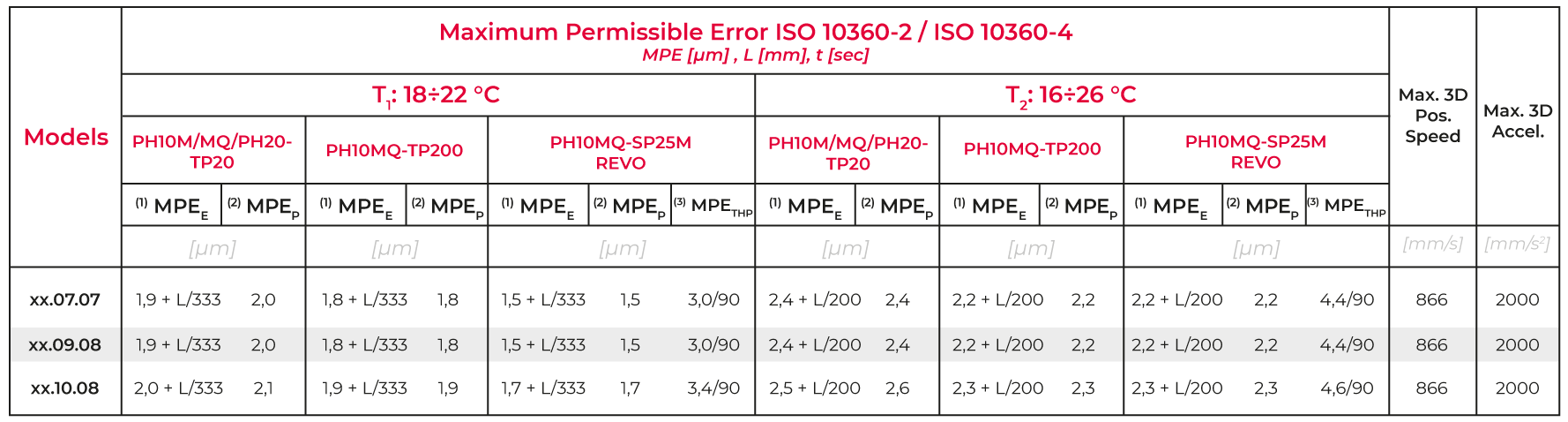

UNIVERSAL 07.07 – 09.08 – 10.08

The services indicated are valid under the following conditions:
– PH10M/PH10MQ/PH20/TP20/TP200: stylus Ø4mm x 10mm
– PH10MQ/SP25: SM1, stylus Ø 5mm x 50mm
– REVO: RSP2/RSH175-RSP3-1/SH25-1, stylus 20mm
– L= measuring length in mm
– Ambient temperature conditions:
T_{1 :} 18÷22 °C; Degrees max: 1,0 °K/h – 2,0 °K/24h – 1,0°K/m
T₂: 16÷26°C; Degrees max: 1,0 °K/h – 5,0 °K/24h – 1,0°K/m

^[1] Maximum Permissible Error on length measurements according to ISO 10360-2
^[2] Maximum permissible point gripping error according to ISO 10360-2
^[3] Maximum Permissible Error of scanning point gripping according to ISO 10360-4 for SP25M / SP80 probes, sphere Ø 25 mm – REVO RSP3-1

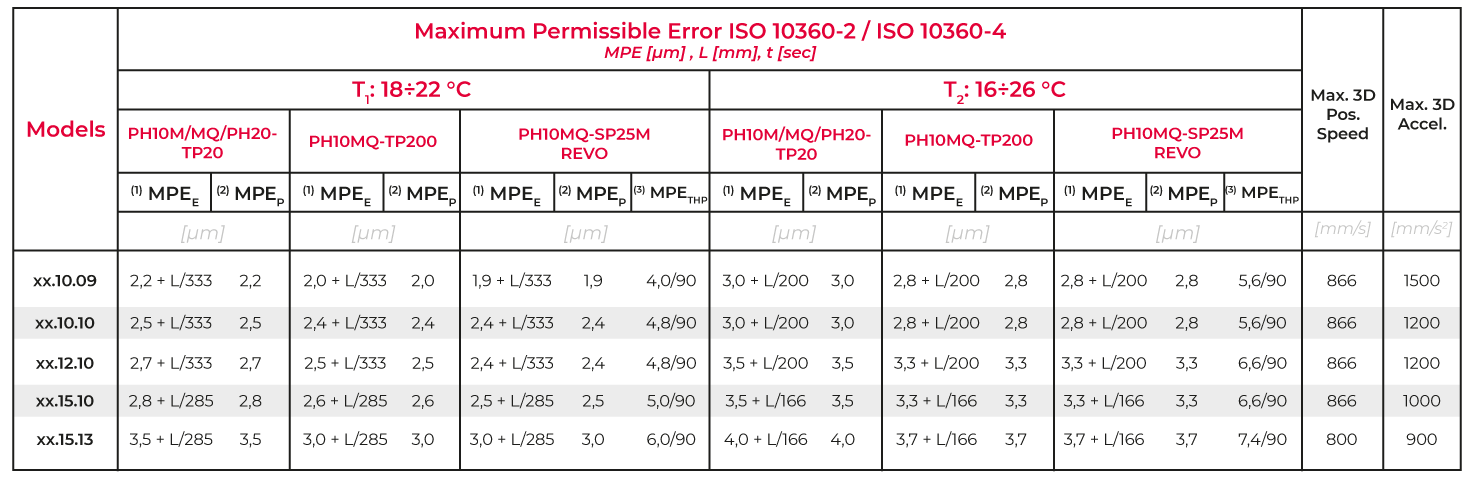

UNIVERSAL 10.09 – 10.10 – 15.10 – 15.13

The services indicated are valid under the following conditions:
– PH10M/PH10MQ/PH20/TP20/TP200: stylus Ø4mm x 10mm
– PH10MQ/SP25: SM1, stylus Ø 5mm x 50mm
– REVO: RSP2/RSH175-RSP3-1/SH25-1, stylus 20mm
– L= measuring length in mm
– Ambient temperature conditions:
T_{1 :} 18÷22 °C; Degrees max: 1,0 °K/h – 2,0 °K/24h – 1,0 °K/m
T₂: 16÷26°C; Degrees max: 1,0 °K/h – 5,0 °K/24h – 1,0 °K/m

^[1] Maximum Permissible Error on length measurements according to ISO 10360-2
^[2] Maximum permissible point gripping error according to ISO 10360-2
^[3] Maximum Permissible Error of scanning point gripping according to ISO 10360-4 for SP25 / M / SP80 / REVO probes, sample sphere Ø 25 mm – REVO RSP3

• Automatic multi-probe thermal compensation
• Active safety system with volumetric scanners
• Pneumatic Vibration Isolation System
• Air Dryer
• Modular Parts Fixturing Kits
• CMM Modular Enclosure
• Modular protection box
• Models and sizes
  COORD3 UNIVERSAL CMMs are available with the following measuring strokes (Y.Z mm)
  7.7 | 9.8 | 10.8 | 10.10 | 12.10 | 15.10 | 15.13
